CAD and Drafting Services

Clear, reliable plans and models to support design, delivery and approval.

VFT provides expert CAD and drafting services to support all project stages.

Our experienced team uses AutoCAD and 12d Model to deliver clean, standards-compliant plans that support project approvals and smooth delivery. From survey and utility plans to civil design and as-constructed drawings, we help keep documentation clear, compliant and on track.

Our CAD and Drafting Capabilities:

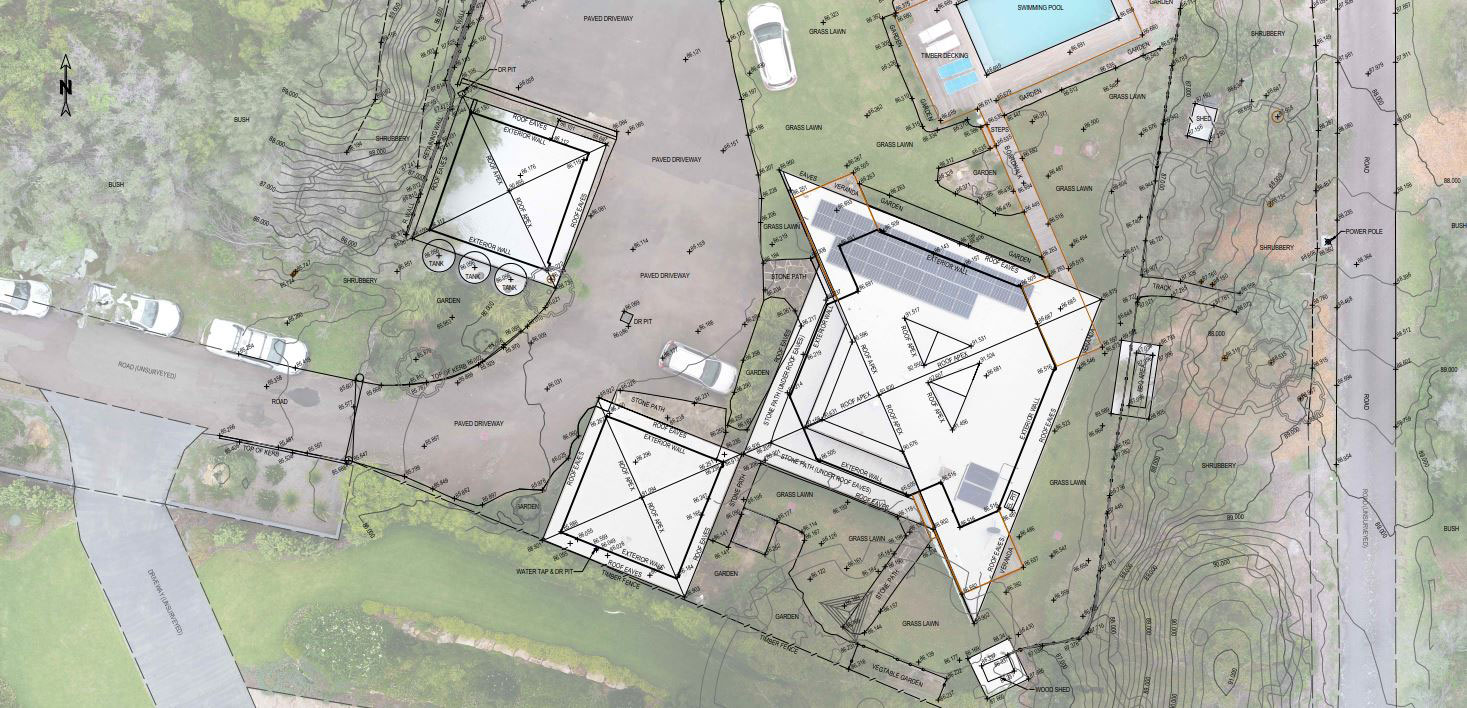

  • Detail survey plans and long sections

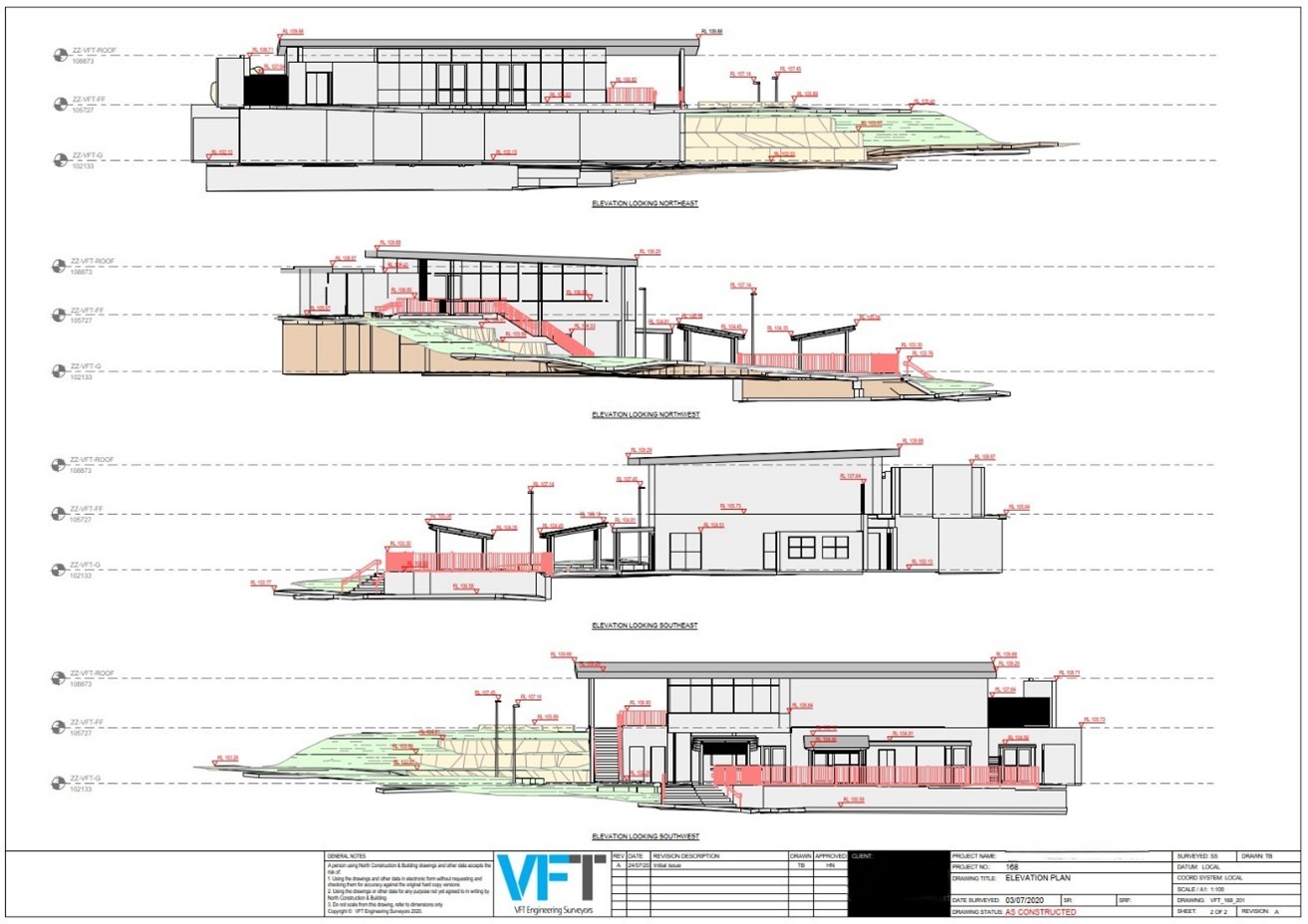

  • WaEX and as-constructed documentation
  • AS5488 utility plan generation
  • CAD support for civil design
  • Combined Utility Drawings (CUD)
  • AS5488 compliant Utility plans
  • 3D model and site visualisations
  • Civil design support
